City Air

City Air – Light, Simple, Built for the City

  • Surf Blue
  • Surf Blue
  • Surf Blue
  • Surf Blue
  • Surf Blue
  • Surf Blue
  • Gravel Grey
  • Gravel Grey
  • Gravel Grey
  • Gravel Grey
  • Gravel Grey
  • Gravel Grey
Video
Video
TOP SPEED 25 KM/H
MAX RANGE Up To 90KM
BATTERRY 36V-13.6AH 486WH
MOTOR 36V 250W
PAYLOAD 150 KG
DISPLAY TFT Display

City Air

City Air – Light, Simple, Built for the City

€1.399,00 €1.099,00
Sale Sold out
Taxes included. Shipping calculated at checkout.
Color: Surf Blue
Size
View full details

City Air

Technical Specifications

  • FRAMESET
  • Fork Inverted air suspension fork
  • Frame 6061 Aircraft grade aluminum alloy

  • ELECTRONICS
  • Motor Nominal 48V 250W, max torque 50nm
  • Battery 48V-20AH-960WH, 21700 cell
  • Charger 2AMP Quick charger
  • Display Mid mount LCD display with 5 levels
  • Headlight 5.75" -45W 2100 lux，high & low beam
  • Taillight A-Spadz patented rear intergrated lightbuilt in saddle design Daylight/ Brake light/Turning light

  • DRIVETRAIN
  • Chain KMC Stainless steel
  • Cranks 40T Chainring w/127mm cranks
  • Cassette SHIMANO 7-speed
  • Rear Derailleur SHIMANO 7-speed
  • Shift Lever SHIMANO 7-speed

  • BRAKE
  • Rotors 180mm front and rear
  • Brake Hydraulic disc brake,2-piston
  • Brake Levers Aluminum Alloy, with power cut off

  • COCKPIT
  • Handlebars Aluminum Alloy,660mm
  • Grips Durable ergonomic grips, lockable
  • Stem Alloy
  • Saddle Customized retro saddle with integrated tail light

  • SUPPORTS
  • Fenders Resin front and rear full coverage
  • Pedals Alloy
  • Kickstand Aluminum Alloy, included, rear mount

  • WHEEL
  • Rims Double-wall Aluminum Alloy
  • Tires CST 20" x 4” Urban tires

Details

Riding Mode

SMAR saddle offers ultra-soft comfort for smooth, pain-free
rides.

Handlebar

Easily adjustable stem ensures comfort and control for everyrider.

Saddle

SMAR saddle offers ultra-soft comfort for smooth, pain-free
rides.

Fork

Aluminum suspension fork with 100mm travel ensures a smooth ride on any surface.

Motor

The powerful Ananda motor delivers 55Nm of torque for confident climbing and higher efficiency for longer rides.

Specs & Size

Technical Specifications
Size Guide
Geometry

FRAMESET

Paint Dust free YS Liquid paint / Triple Spray and Coating Process
Fork EXSHO - Oil / Coil Suspension Fork / Alloy Crown and Lowers
Frame 6061 Aluminum Alloy, Smooth welding

COCKPIT

Handlebars Aluminum alloy - W: 660mm riser bar
Rear Rack Internal mount aluminum alloy
Stem Aluminum alloy adjustable stem
Saddle SMAR comfortable city saddle

DRIVETRAIN

Chain Stainless Steel
Cranks Alloy Crank - 42T Chainwheel
Gear SHIMANO -TY300D 7 Speed
Shifter SHIMANO -M315 7 Speed thumb shifter

ELECTRONICS

Motor ANANDA - Rated 36V250W, 35N•M
Battery 36V15.5AH(486WH) - 21700 Lithium battery - ISO13849 Qualitified Smart BMS - Patented strip lights&locking system
Charger Output 42V2A Charger
Display 2.4" Full RGB color side mount TFT display - 5 Speed Levels - Full Realtime Details - NFC&BT adapted
Headlight 2W 30 lux
Taillight Daylight / Brake Light
Pedal Assistance Dual hall 12-magnet cadence sensor

SUPPORTS

Fenders Reinforce Resin Fender, with adjustable stainless steel holder
Pedals Reinforce Resin Pedal
Kickstand Alloy Side Kickstand

BRAKE

Brake GEMMA Power cut off Hydraulic Disc Brake

WHEEL

Rims Aluminum Alloy
Tires KENDA 27.5*1.95 Tires

Size guide

Size One Size
Rider Height 5'1" -6'2" inches / 155 - 188 cm
Inseam Range 155-158 cm

It's all about the journey.

Book a test ride>

What is an inseam?

What is an inseam?

The inseam is the measurement from the crotch of the pants to the bottom of the leg. It is a key measurement to determine the length of the pants. The inseam is important because it determines how long the pants will be and how they will fit. It is important to measure the inseam correctly to ensure that the pants fit properly.
Gravel Grey

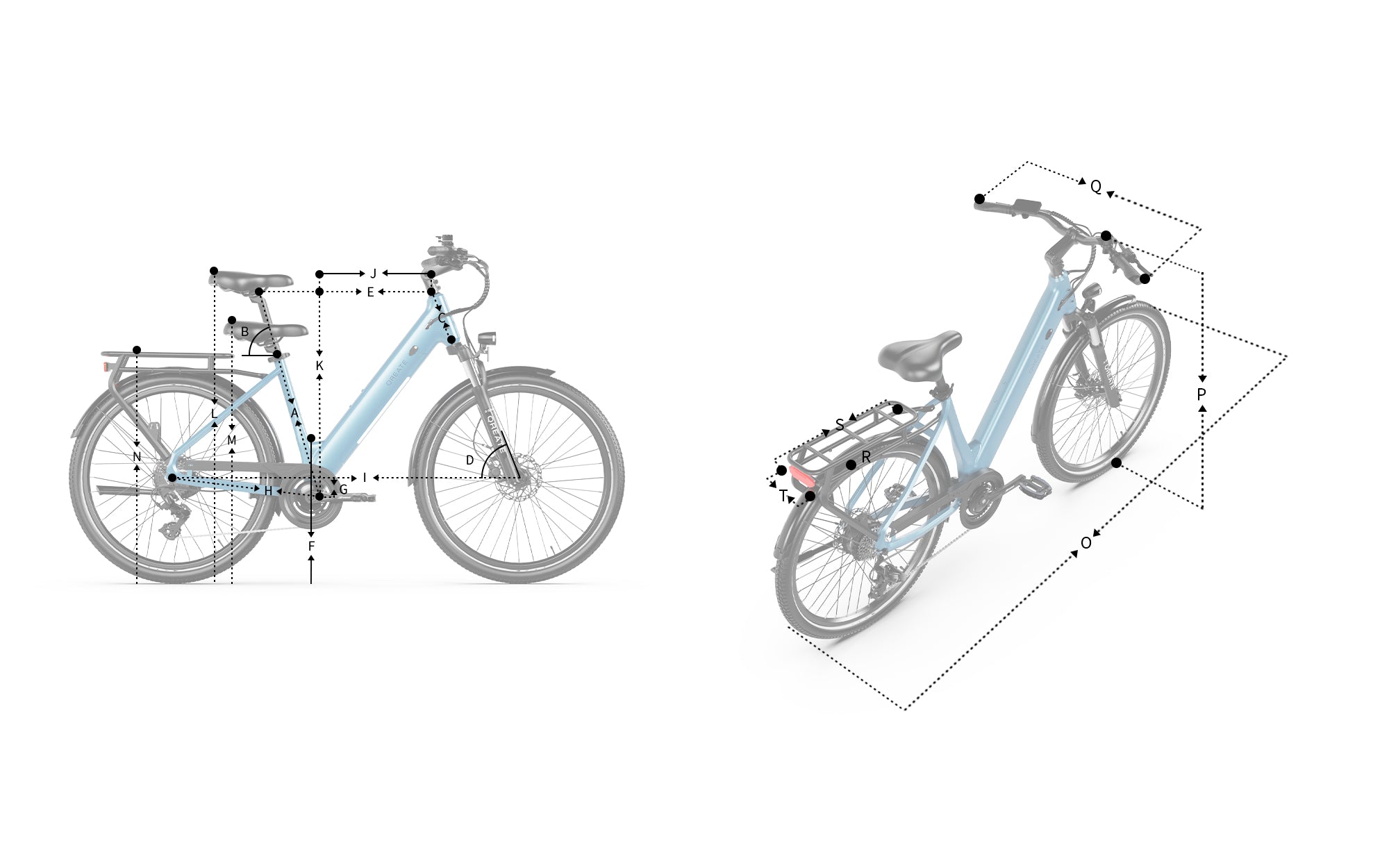

Geometry

A-Seat tube 472 mm
B-Seat tube angle 74°
C-Head tube 173 mm
D-Head angle 69°
E-Top tube length 568 mm
F-Standover height 465 mm
G-BB drop 61 mm
H-Rear Center 450 mm
I-Wheelbase 1123 mm
J-Reach 401 mm
K-Stack 768 mm
L-Maximum seat height 1052 mm
M-Minimum seat height 851 mm
N-Rear rack height 756 mm
O-Total length 1816 mm
P-Handlebar height 1068 mm
Q-Handlebar length 707 mm
T-Rear rack width 140 mm
R-Rear Rack Load 25 kg
Gravel Grey
